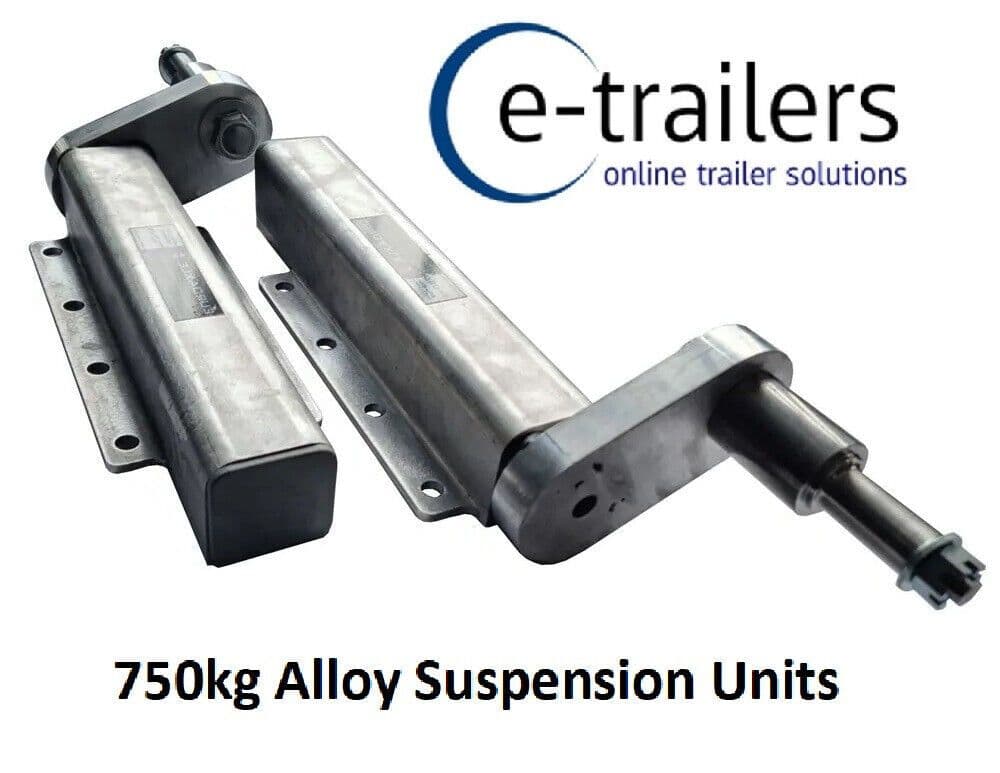

Genuine 750kg alloy suspension units made by Euro Axle here in the UK

750kg is the gross capacity of both units (not each unit)

We are agents for Euro Axle products and therefore have full access to spares and accessories

These 750kg units are high quality, lightweight and have a alloy body and drop arm

The standard stub axle is 30mm (that measurement is taken on the 'shoulder' of the stub axle) - so basically the 'shoulder' is from the drop arm to the rear of the hub.

The should sizes are known as:

Standard - 30mm for 0 offset wheels

Extended - 50mm for Offset Wheels (eg. Old Austin Mini Wheels)

Super Extended - 60mm for Offset or Extra Wide Wheels (eg. 20.5-8x10 wheel floatation type)

The stub axle is 1" imperial and therefore will only take hubs with taper roller bearings numbered 44643 and LM44643L

See our other adverts for the hubs on their own with 4" or 100mm PCD.

Manufactured in the UK from high grade alloy with an overall weight saving of at least 9kg when compared to galvanised steel units

Supplied with castellated nuts, washers and split pins.

The units have an 8 hole mounting - approximately 73mm between bolt hole centres and 97mm across bolt hole centres.

If required, we have the weld on mounting plates and fixing bolts advertised in our other adverts.

THESE UNITS ARE 750kg CAPACITY PER PAIR

Please check compatibility with us if not sure.
