Product Description

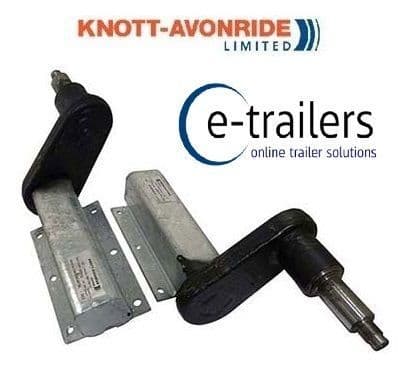

Genuine Knott Avonride high quality Galvanised Body 350kg suspension units, Manufactured from mild steel ,25mm thick forged steel drop arms with rubber suspension inserts and galvanised outer casings.
Supplied with castellated nuts, washers and split pins
Extended length 1" stub axles with 6 hole mounting plate ( 76mm between bolts and 79mm across) - ideal for wheels that are offset - please call if you need to check on compatibility or the fitment
100mm long Drop arm with a angle of 45 degree below center.
Main body length 198mm Overall length of extended shoulder + stub axle 101mm Drop arm to rear of hub 49mm
Fits standard 1" tapered hubs
6 BOLT FIXING SUSPENSION UNITS WITH EXTENDED 1" STUB AXLES WHICH ARE PERFECT FOR OFFSET WHEELS
HUBS (4" or 100mm PCD), MOUNTING PLATES AND BOLTS ARE ALSO AVAILABLE PLEASE SEE OUR OTHER ITEMS FOR SALE.
THESE UNITS ARE 350kg CAPACITY PER PAIR
Delivery & Returns
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed feugiat sem id nunc finibus, et facilisis dolor aliquam. Donec ex felis, scelerisque ut facilisis et, convallis nec magna. Nulla vel ex eget lacus imperdiet mattis convallis quis leo. Mauris laoreet vulputate mauris. Vestibulum in blandit enim. Vivamus consectetur mattis dapibus. Nullam ultricies malesuada dignissim.
350kg EXTENDED KNOTT GALVANISED TRAILER SUSPENSION UNITS WITH 1" STUB AXLE
Item in Stock
(2 Available)
Order within to get it by .
£123.00
£102.50
(ex. VAT)
Login to add this product to your wishlist.
You Will Earn 123 points which is the equivalent of £2.46
